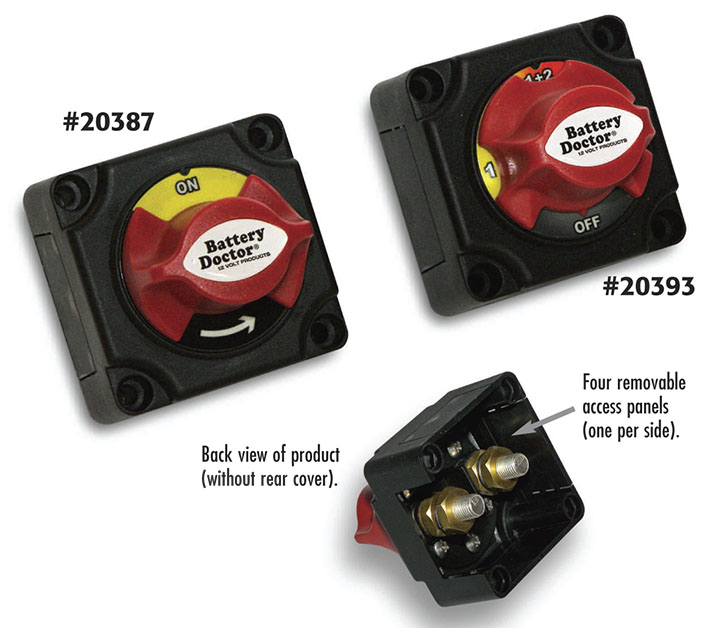

Battery Doctor® Rotary Dial Disconnect Switches
Click to enlarge
Description
Specifications
Related Products
These new Battery Doctor® master disconnect switches come in a wide variety of styles. Choose from either knob or key style and with or without a bottom cover for panel mounting or mounting through the fire wall. For application up to 48 volts DC and can be in either a 2 or 4 position. All new disconnect switches are ISO 8846 approved. Specifications subject to change without notice. Continuous rating: 300 amps, Intermittent rating: 1000 amps/5 seconds, Crank rating: 700 amps/10 seconds, Can be used with 1 or 2 batteries.
Dimensions: 69 mm x 69 mm x 75 mm high.
Heavy-Duty Battery Doctor® Rotary Dial Disconnect Switches
*Please select the quantity for each item you wish to request a quote on and click the 'Add To Quote' button below.
Model
Name+
Function
Key/Knob
Bottom Cover
Add Qty.
20370-SPO
#20370-SPO
ON/OFF, ON/OFF
Key
No
20373-SPO
#20373-SPO
ON/OFF, ON/OFF
Knob
No
20375-SPO
#20375-SPO
ON/OFF, ON/OFF
Key
Yes
20377-SPO
#20377-SPO
ON/OFF, ON/OFF
Knob
Yes
20379-SPO
#20379-SPO
ON/OFF
Key
No
20383-SPO
#20383-SPO
ON/OFF
Knob
No
20385-SPO
#20385-SPO
ON/OFF
Key
Yes
20387
#20387
ON/OFF
Knob
Yes
20389-SPO
#20389-SPO
OFF/1, BOTH/2
Knob
No
20393
#20393
OFF/1, BOTH/2
Knob
Yes
