ATO/ATC Fuse Panels

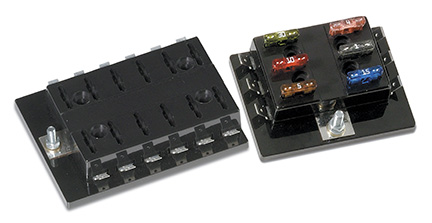

ATO/ATC Fuse Panels Click to enlarge

    Accepts ATO/ATC fuses or plug-in circuit breakers.

  • #10-32 stud terminal with hex nut, flat washer and lock washer supplied.
  • Four .218 diameter mounting holes for #10 screws.
  • Base: Polycarbonate, Cover: Clear polycarbonate.
  • Maximum amperage per circuit: 25 amps, Maximum voltage: 32VDC, Maximum amperage per block: 150 amps.

    Maximum amperage per circuit: 25 amps, Maximum voltage: 32VDC, Maximum amperage per block: 150 amps.

 *Please select the quantity for each item you wish to request a quote on and click the 'Add To Quote' button below.

 Model   Name+   Description                                 Add Qty.
31020-7  #31020-7  6-Way ATO/ATC Fuse Panel
31023-7  #31023-7  8-Way ATO/ATC Fuse Panel
31025-7  #31025-7  10-Way ATO/ATC Fuse Panel
31027-7  #31027-7  12-Way ATO/ATC Fuse Panel
Displaying 1 to 4 (of 4 products) Result Pages:  1
