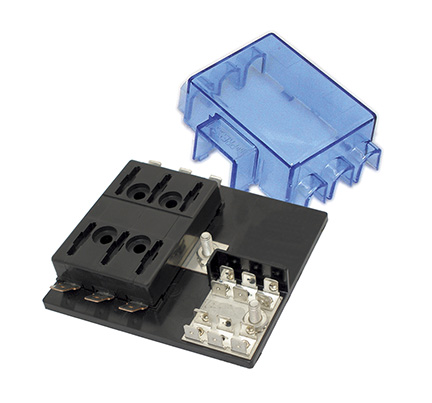

ATO/ATC Fuse Panels with Common Ground and Cover

Accepts ATO/ATC fuses or plug-in circuit breakers.

  • #10-32 stud terminal with hex nut, flat washer and lock washer supplied.
  • Four .218 diameter mounting holes for #10 screws.
  • Base: Polycarbonate, Cover: Clear polycarbonate.
  • Maximum amperage per circuit: 25 amps, Maximum voltage: 32VDC, Maximum amperage per block: 150 amps.
    • Maximum amperage per circuit: 25 amps, Maximum voltage: 32VDC, Maximum amperage per block: 150 amps.


     *Please select the quantity for each item you wish to request a quote on and click the 'Add To Quote' button below.

     Model   Name+   Description                                 Add Qty.
    31060-7  #31060-7  6 Position ATO/ATC Fuse Panel with Common Ground and Cover
    31062-7  #31062-7  8 Position ATO/ATC Fuse Panel with Common Ground and Cover
    31064-7  #31064-7  10 Position ATO/ATC Fuse Panel with Common Ground and Cover
    31066-7  #31066-7  12 Position ATO/ATC Fuse Panel with Common Ground and Cover
    Displaying 1 to 4 (of 4 products) Result Pages:  1
