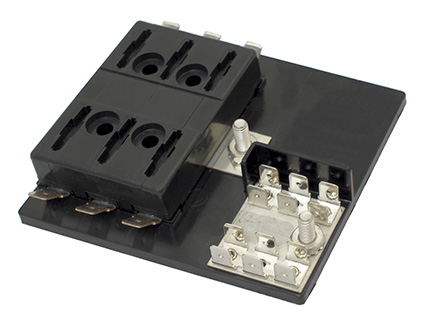

ATO/ATC Fuse Panels With Ground Terminals

Accepts ATO/ATC fuses or plug-in circuit breakers. logo_ROHS_HR

  • #10-32 stud terminal with hex nut, flat washer and lock washer supplied.
  • Four .218 diameter mounting holes for #10 screws.
  • Base: Polycarbonate, Cover: Clear polycarbonate.
  • Maximum amperage per circuit: 25 amps, Maximum voltage: 32VDC, Maximum amperage per block: 150 amps.
  • IP Rating: 40
