Heavy-Duty Dual Battery Disconnect Switch
[20258-7]

  • Heavy-Duty Dual Battery Disconnect Switch
Click to enlarge

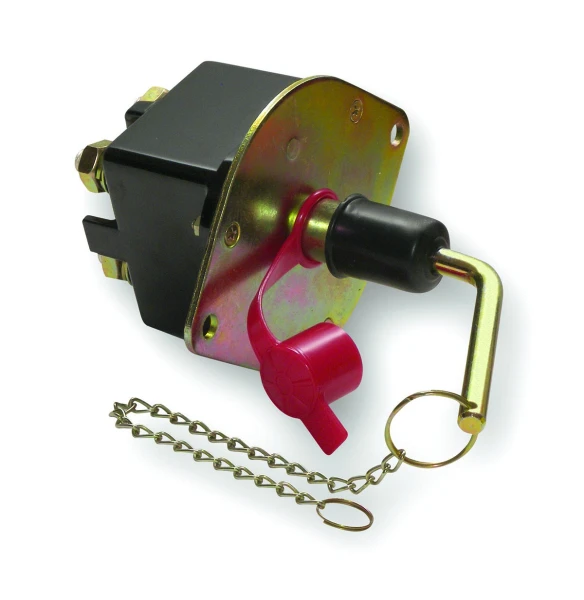

Heavy-Duty Dual Battery Disconnect Switch Key turns 90° to instantly connect or disconnect dual batteries.

  • Engages or Disconnects Two Batteries Simultaneously
  • Rated 250 Amps Continuous, 2500 Amps Surge, at 12 Volts for 5 Seconds

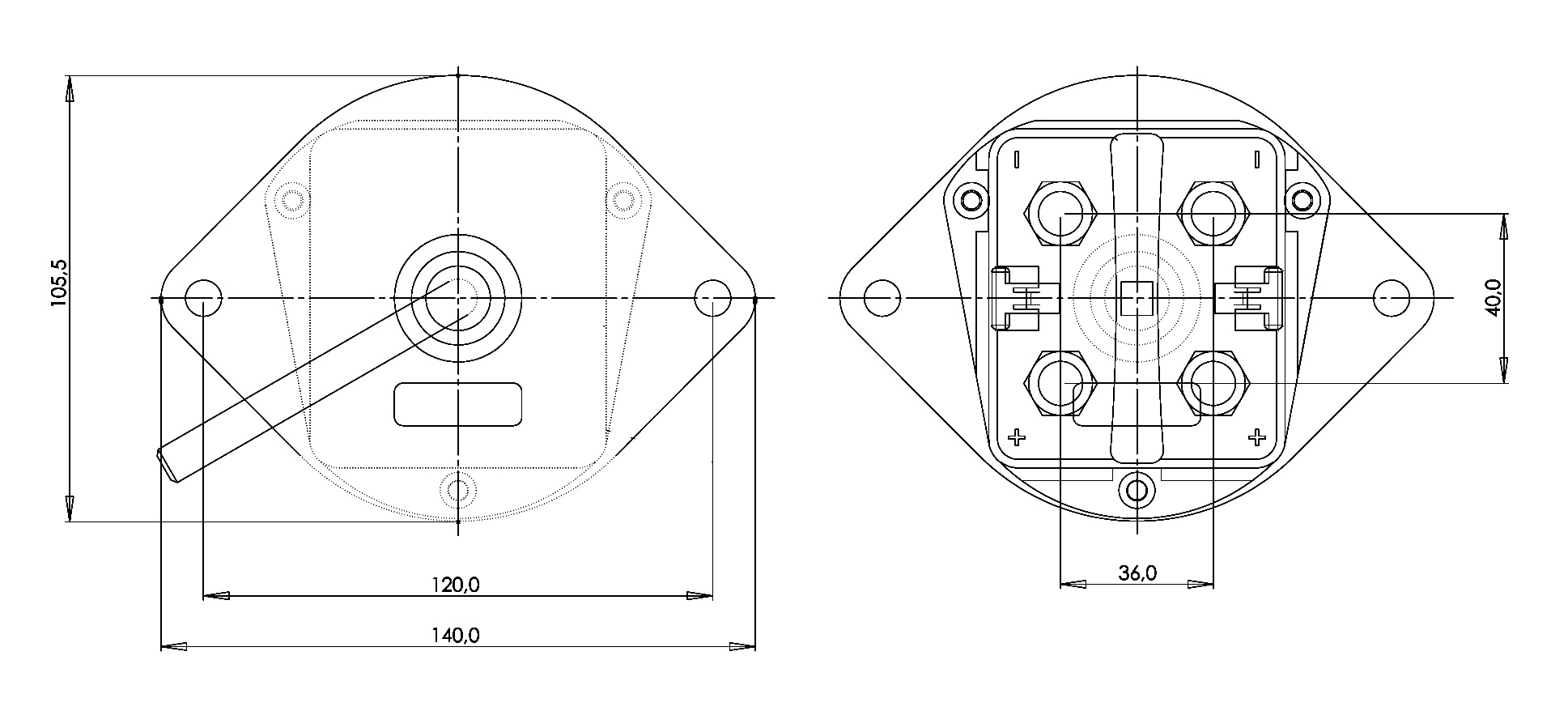

  • Two 1/2" Diameter Mounting Holes on 4" Centers
  • Key is Captive in "On" Position and Removable in "Off" Position
  • Weather-Resistant Cover and 1 Key Included

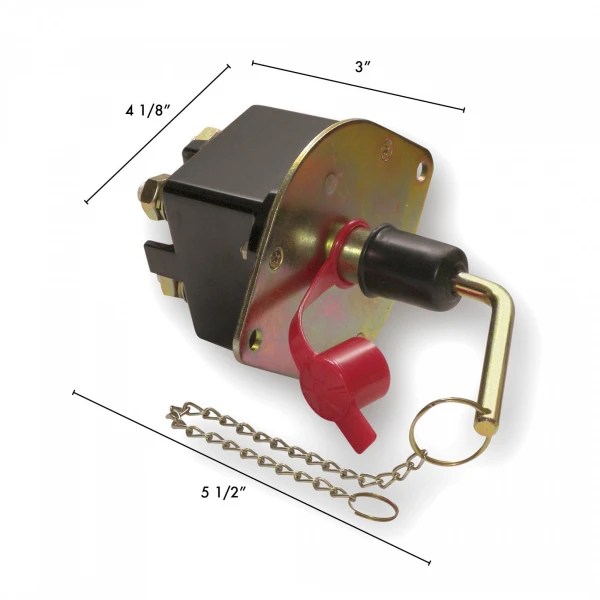

  • 5-1/2" L x 4-1/8" W x 5" D (3" Deep Behind Panel)
  • Four 10mm Threaded Studs with Nuts
  • For use on Negative Battery Cables





Please click the links below to access files:

  •  RoHS Compliant

Product Weight (lb): 2.3
