Battery Disconnect Keyed & Rotary Switches
Battery disconnect switches and master switches are used to preserve battery life and prevent theft by cutting off the power supply to a battery with the simple turn of a switch or key. They are commonly used for marine and automotive applications including boats, cars, RVs, industrial equipment and agricultural equipment. Universal ignition switches are used start and turn off the ignition or run the battery for accessory use (lights, radio, etc.) only. Our battery disconnect switch with key options include:

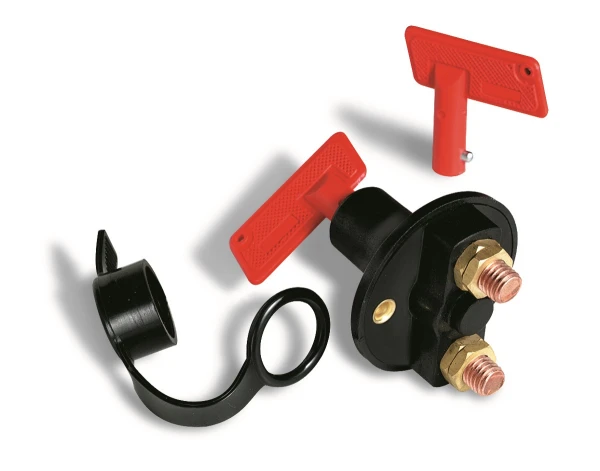

- Universal Ignition Battery Disconnect Switch: a master battery isolator disconnect switch with 30 amps continuous at 12 volts. Features 4 stud terminals and includes two brass keys.
- Rotary Knob Battery Disconncet Switch: a master switch with a rotary knob and featuring 100 amps continuous, 500 amp surge at 12 volts.
Water-Resistant Battery Disconnect Switches for Marine and Automotive Use
Our water-resistant master switches are RoHS compliant and a perfect choice for marine and automotive applications. Our master switches are easy to install and provide a convenient way to temporarily disconnect power to your battery. WirthCo carries two water resistant master switch options:
- Water-Resistant Master Battery Disconnect Switch: rated 100 amps continuous, 500 amps surge at 12 volts and 50 amps continuous, 250 amps surge at 24 volts.
- Battery and Alternator Water-Resistant Master Disconnect Switch: reduces the risk of alternator damage caused by heavy voltage surges; rated for 100 amps continuous at 12 volts, 500 amps surge.
WirthCo carries rotary knob battery disconnect switches, master battery disconnect switches and universal ignition battery switches, including water-resistant options, for easy self-installation. Contact us to request pricing.
Replacing Your Vehicle Ignition Switch
Vehicle ignition switches can be replaced by a repair shop or can be installed on your own if you feel comfortable with disassembling and reassembling a steering column. The process can be accomplished using only a screwdriver and can be a cost-effective option for those who prefer to perform their own work on their vehicles.
Replacing an ignition switch involves removing the steering wheel and steering column to access the existing ignition switch. This work should be performed with the steering wheel in the center position and the battery disconnected to prevent electric shock. Once the old ignition switch is removed, you insert the new switch and reassemble the steering column and steering wheel, and then test the switch.
