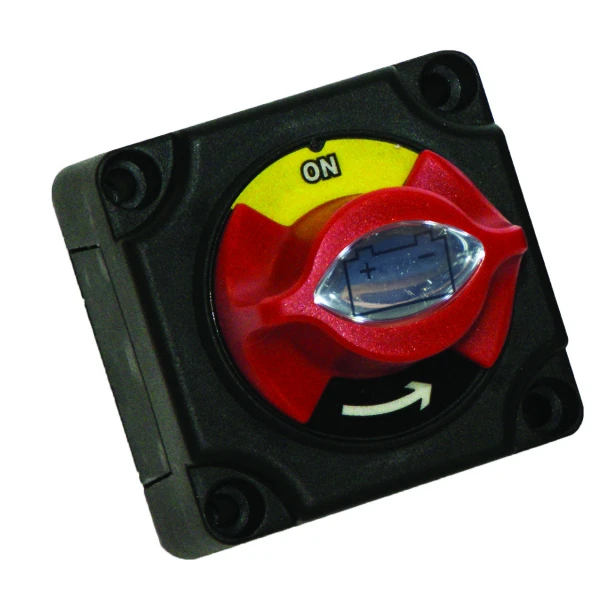

2-Position Mini Master Single Battery Disconnect Switch

[20387]
Add to Pricing Request
2-Position Mini Master Single Battery Disconnect Switch for use on a single 12 Volt Battery - negative cable application. logo_ROHS_HR_resize
  • For Application Up to 48 Volts
  • ISO 8846 Approved
  • Continuous Rating: 300 Amps
  • Intermittent Rating: 1000 Amps / 5 Seconds
  • Crank Rating: 700 Amps / 10 Seconds

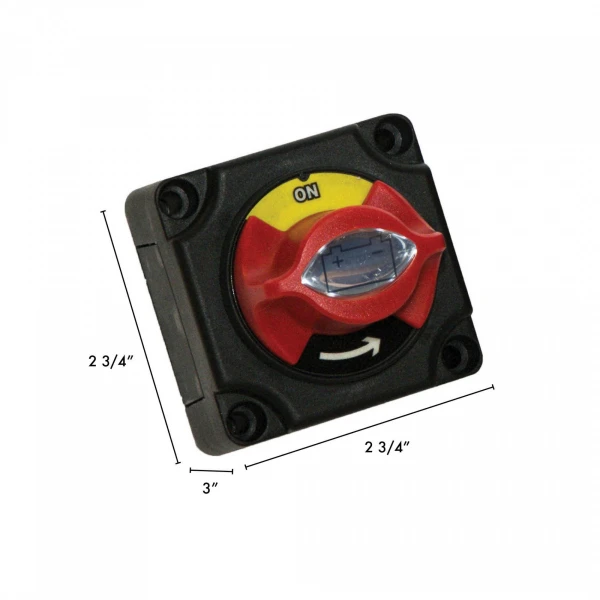

  • Dimensions: 2-3/4" L x 2-3/4" W x 3" H
  • Recess, Flush Top Mount - 4 Screw Holes
  • Removable Back Plate & 4 Side Knock out Plates for Battery Cables

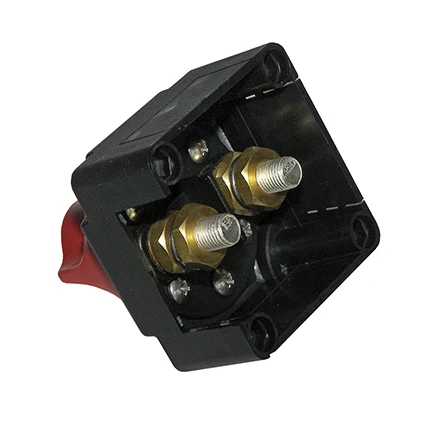

  • 10mm Threaded Studs with Nuts

Click to enlarge
Add to Pricing Request
Product Weight (lb): 0.54
