Battery Isolator Series

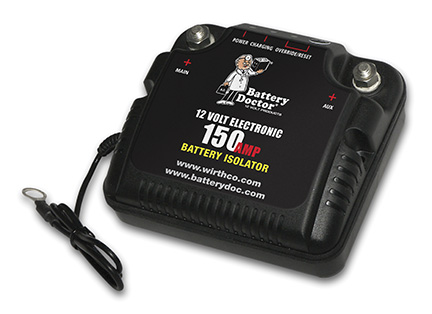

Battery Isolator Series Click to enlarge

    Our new state-of-the-art, fully automatic dual battery controller is suitable for any vehicle with an auxiliary battery. Smaller and lighter than other standard battery isolators, the Battery Doctor® 100 and 150 amp Battery Isolator employs electronic switching control technology. Our high-performance electronic isolator allows you to charge two batteries from a single alternator, and keeps the starting battery isolated from the second battery. Also, with a single push of the override/reset button, you can change the batteries to parallel mode for jump starting.
  • Water resistant – suitable for marine use (IP62)!
  • Priority charging for starting battery.
  • Includes mounting bracket.
  • Over current and surge protected for vehicles with electronic systems.
  • Manual override for starting battery.
  • Automatically charges auxiliary battery.

  • Voltage: 12 volt
  • Charging Type: Parallel
  • Control: Electric
  • Approval: EMC
  • Current Draw: Charging 500 mA/(Standby 300 mA)
  • Surge Protection: Built In
  • Mounting: Surface/Fire Wall/Battery Side
  • Voltage Draw: None

Related Files:
Product Diagram

 *Please select the quantity for each item you wish to request a quote on and click the 'Add To Quote' button below.

 Model   Name+      Charging Current                              Add Qty.
20090  #20090    75 amp/100 amp peak
20092  #20092    125 amp/150 amp peak
Displaying 1 to 2 (of 2 products) Result Pages:  1
