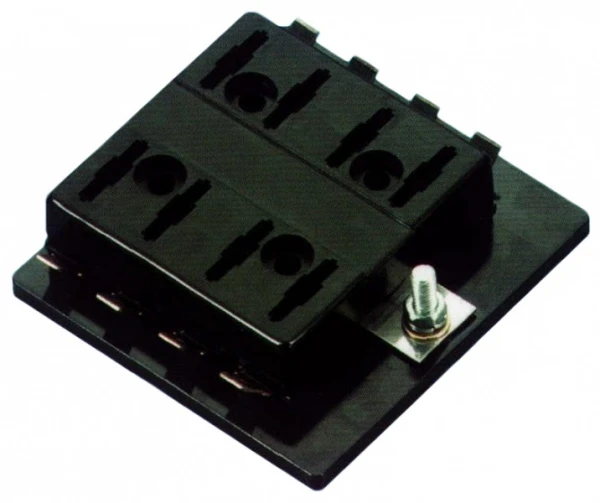

8-Way ATO/ATC Fuse Panel

Accepts ATO/ATC fuses or plug-in circuit breakers.
  • #10-32 stud terminal with hex nut, flat washer and lock washer supplied.
  • Four .218 diameter mounting holes for #10 screws.
  • Base: Polycarbonate, Cover: Clear polycarbonate.
  • Maximum amperage per circuit: 25 amps, Maximum voltage: 32VDC, Maximum amperage per block: 150 amps.
  • IP Rating: 40
