Heavy Duty Single Battery Disconnect Switch
[20259]

  • Heavy Duty Single Battery Disconnect Switch
Click to enlarge

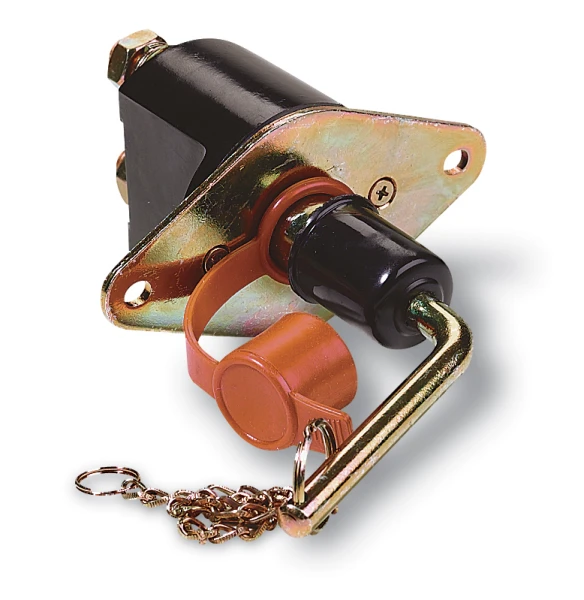

Heavy Duty Single Battery Disconnect Switch Incorporates Flange for Panel Mounting from Front or Rear
For Discreet Appearance, Panel Mounting from Rear Requires Only a Single Center Hold Plus Two Mounting Holes

"Key turns 90° to instantly connect or disconnect the battery"

  • Rated 250 Amps Continuous, 2500 Amps Surge, at 12 Volts
  • Two 1/2" Diameter Mounting Holes on 4" Centers
  • Key is Captive in "On" Position and Removable in "Off" Position
  • Weather-Resistant Cover Included

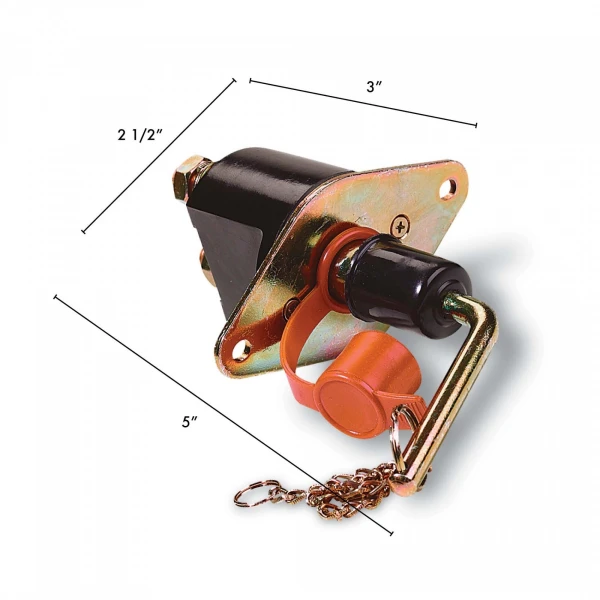

  • 5" L x 2-1/2" W x 4-5/8" D (3" Deep Behind Panel)
  • Two 10mm Threaded Studs with Nuts
  • For Use on Negative Battery Cable

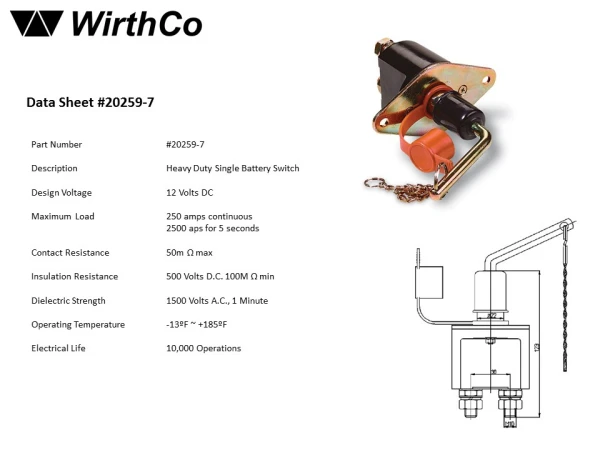

Please click the links below to access files:

  •  RoHS Compliant



Product Weight (lb): 1.29
